Year 2 Week 1: Cylindrical shape

1: Sketching

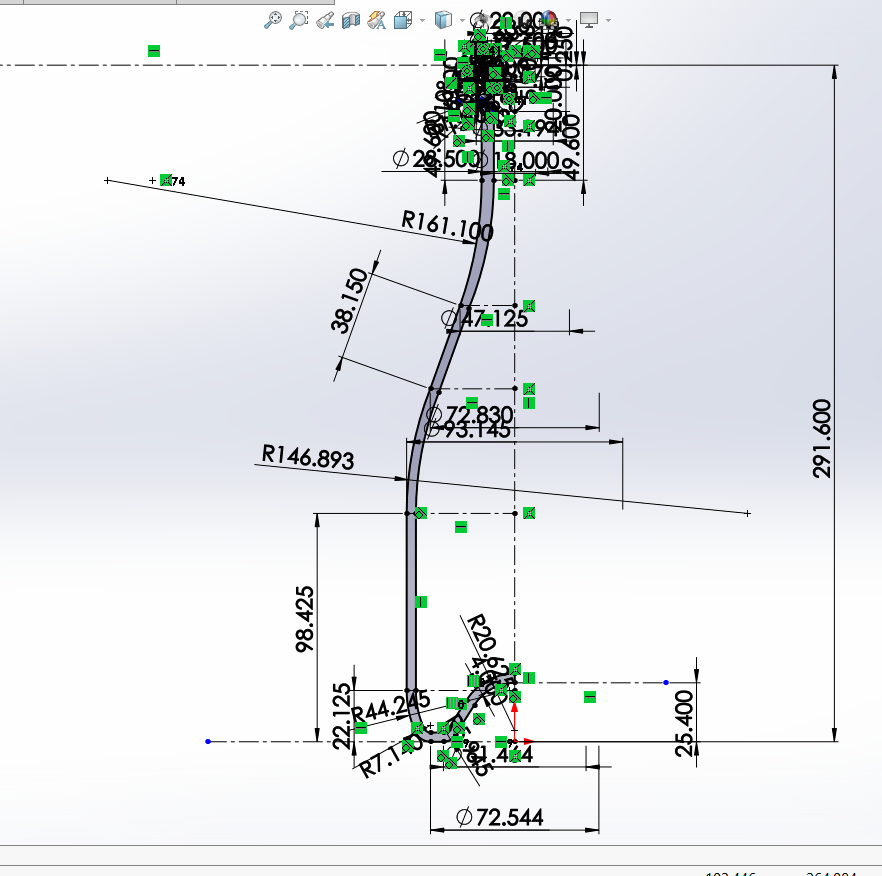

I started sketching by referring to the drawing but there is some parts on the drawing that I couldn't understand. I looked at the demo video to find those parts and followed those steps. I also learnt to use "Splint" and "point" when sketching (don't think I've used them before this)


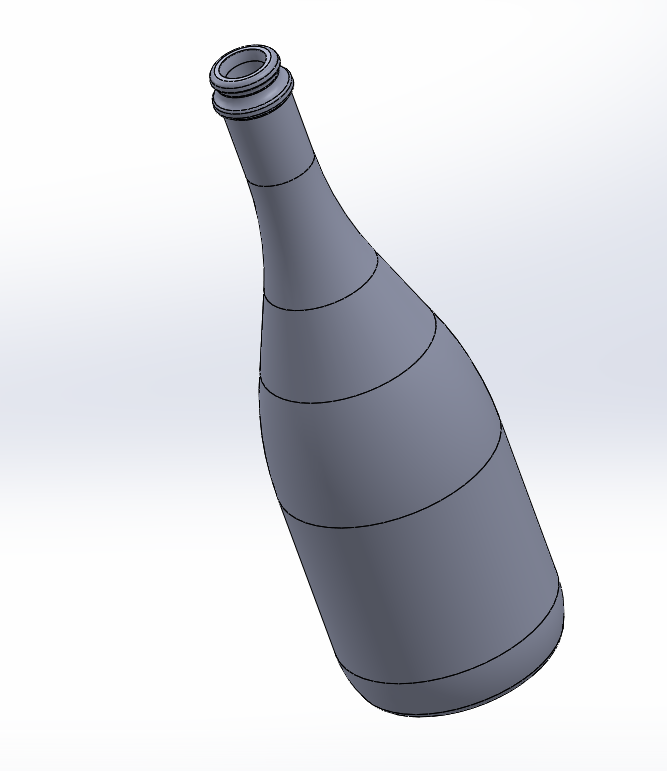

2:Resolve


Nothing much, just the usual hours and hours of struggling.


3: Circular pattern

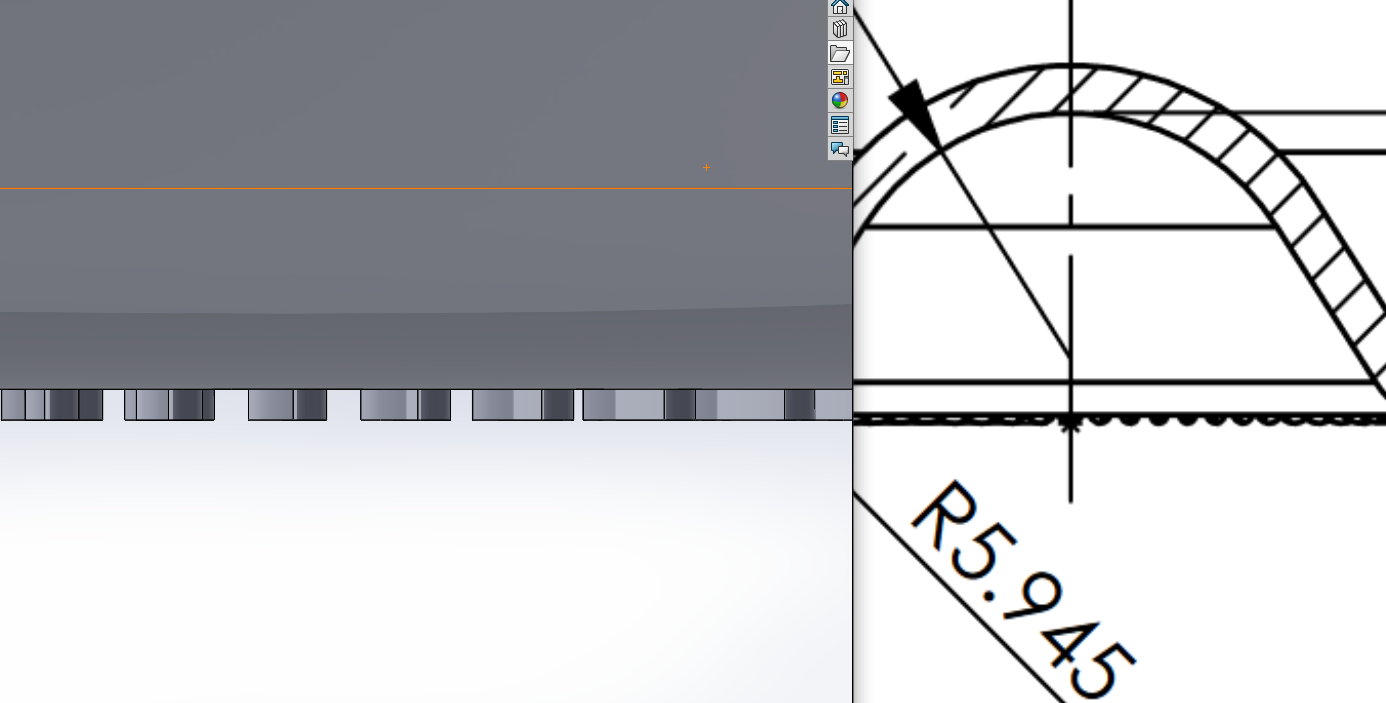

 I sketched an complete shape, used circular sketch patterns, and extruded the whole thing and then realise it doesn't look like the drawing. (extruded ones looked like square teeth but they should be curved U shape)

So I deleted everything and sketched just half of the shape, revolved it and then make circular patterns. I think I done it right this time.
