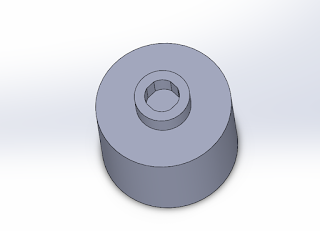

The head structure is not super complicated thus building process was relatively easier than other parts.
I started by measuring and recording all the dimensions in an evaluation sketch.

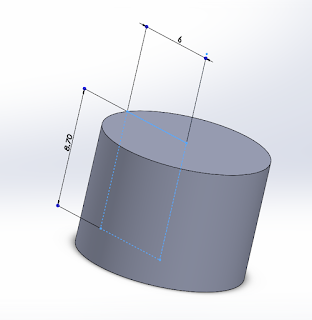

1: revolve a cylinder.
2: Adding another hollow cylinder on the top face
The hole was created using circle tool and polygon tool. I drew a 8 sided polygon in a circle then trimmed off the extra lines. I believe this method is easier than sketching each lines individually.
3: extruding another cylinder using the same method at the bottom face.
4. Adding fillets.
5: Adding another fillet on the top
6: Lastly extrude cut a hole at the bottom.
Done!
